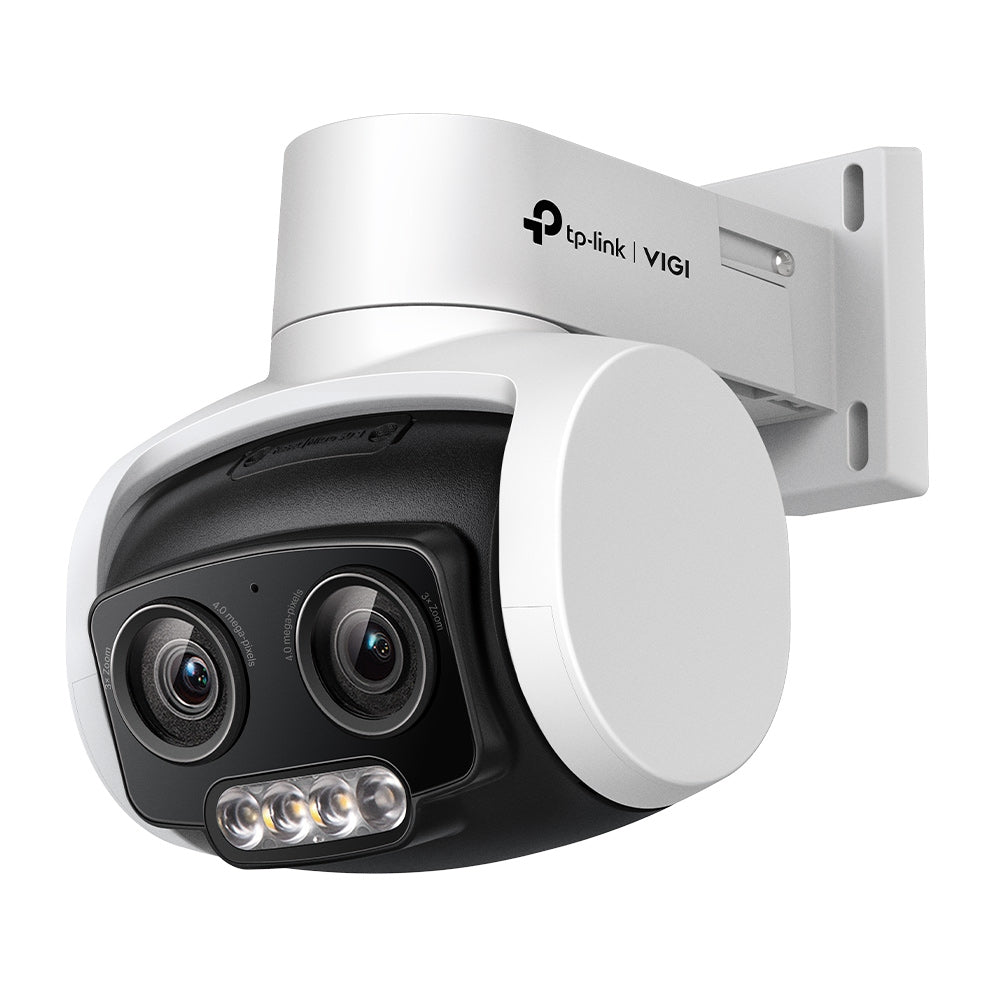

VIGI C540V VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
-
4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
-
24h Full-Colour:: Captures 24 hours of full-colour details, even in pitch-black conditions, thanks to a large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
-
3× Zoom: Allows for closer viewing of objects in expansive areas.
-
Instant Zoom: Zooming is instant without suffering from delays and image dragging.
-
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
-
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits a certain region.
-
Powerful Pan Tilt: Customized patrol routes and auto-tracking provide more intelligent options to monitor key areas and improve security within your property.
-
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
-
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
-
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
-
IP66 Waterproof: Reliable IP66 for stable outdoor performance.
-
Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256GB).
CAMERA |
Image Sensor |
1/3” Progressive Scan CMOS |
Shutter Speed |
1/3 to 1/10000 s |
Slow Shutter |
Yes |
Minimum Illumination |
0.005 Lux; 0 Lux with IR/white light |
Day/Night Mechanism |
IR Cut Filter |
Day/Night Switch |
Day/Night/Auto/Schedule-Switch |
Zoom |
3x Mixed Zoom |
LENS |
Focal Length |
4-12 mm (Mixed Zoom) |
Aperture |
F1.6 |
FOV |
Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46° |
Lens Mount |
M12*P 0.5 |
PTZ |
Pan/tilt Range |
Pan: 0° to 332°, Tilt: 0° to 120° |
Pan/tilt Speed |
Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s
Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s |
Presets |
300 |
Patrol Scan |
8 patrols, up to 8 presets for each patrol |
Power-off Memory |
Yes; Auto restore to previous PTZ and lens status after power failure |
Park Action |
Yes; Preset; Patrol Scan |
3D Positioning |
Yes |
VIDEO |
Max. Resolution |
2560 X 1440 |
Main Stream |
Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Sub-Stream |
Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control |
CBR, VBR |
Video Compression |
Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
H.264 Type |
Main Profile/High Profile |
H.264+ |
Main Stream Supported |
H.265 Type |
Main Profile |
H.265+ |
Main Stream Supported |
Video Bit Rate |
Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
ILLUMINATOR |
IR LED |
Quantity: 1 Range: 30m Wavelength: 850nm |
White LED |
Quantity: 3 Range: 30m |
Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
IMAGE |
Image Settings |
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range |
DWDR |
SNR |
≥ 52 dB |
Image Parameters Switch |
Yes |
Privacy Mask |
Up to 4 Masks |
ROI |
1 Region |
OSD Setting |
Yes |
AUDIO |
Audio Communication |
Two-Way Audio |
Audio Input |
Yes |
Audio Output |
Yes |
Audio Compression |
Yes |
Audio Sampling Rate |
8KHz |
Environment Noise Filtering |
Yes |
Audio Bit Rate |
64 Kbps(G.711 alaw) |
NETWORK |
Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
Network Storage |
NAS (NFS, SMB/ CIFS) |
API |
Open Network Video Interface (Profile S) |
Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
Client |
VIGI App, VIGI Security Manager, VIGI NVR, Web |
Web Browser |
Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Cloud |
Yes |
ONVIF |
Yes |
INTERFACES |
Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm |
N/A |
Reset Button |
Yes |
Power |
DC Power Port |
On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB |
Built-in Microphone |
Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Built-in Speaker |
Yes |
Audio |
N/A |
ALARM AND EVENT MANAGEMENT |
Smart Event |
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
Basic Event |
Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
Alarm Linkage |
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
Linkage Method |
N/A |
Output Notification |
Message Push |
GENERAL |
Package Contents |
VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Operating Temperature |
-30–60 °C |
Storage Temperature |
-40–60 °C |
Storage Humidity |
95% or Less (Non-Condensing) |
Operating Humidity |
95% or Less (Non-Condensing) |
Material |
Plastic |
Power Supply |
12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3at, class 4) |
Power Consumption |
Maximum: 14 W Typical (Day Mode): 2.9 W Typical (Night Mode with IR LED): 5.7 W Typical (Night Mode with White LED): 6.1 W |
Protection |
IP66 |
Product Dimensions (L x W x H) |
139*136*107 mm |
Certifications |
CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
