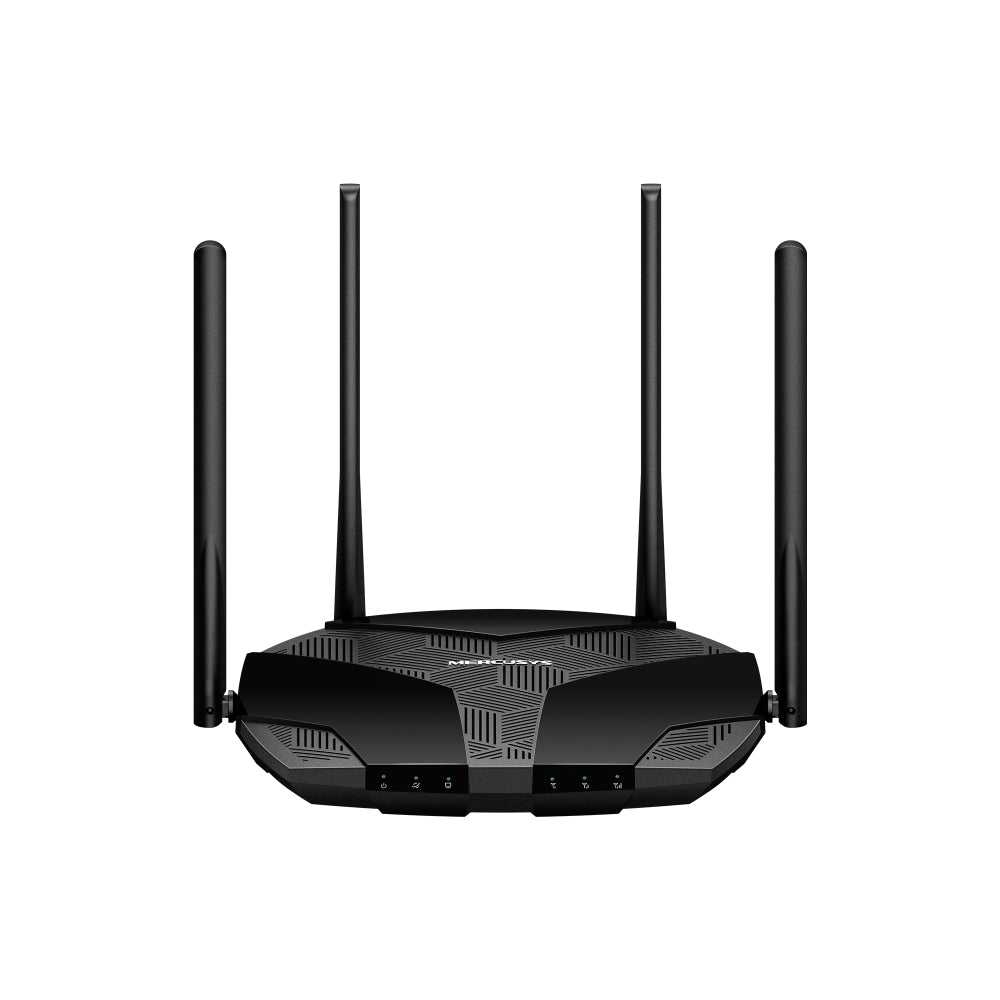

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
- 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.

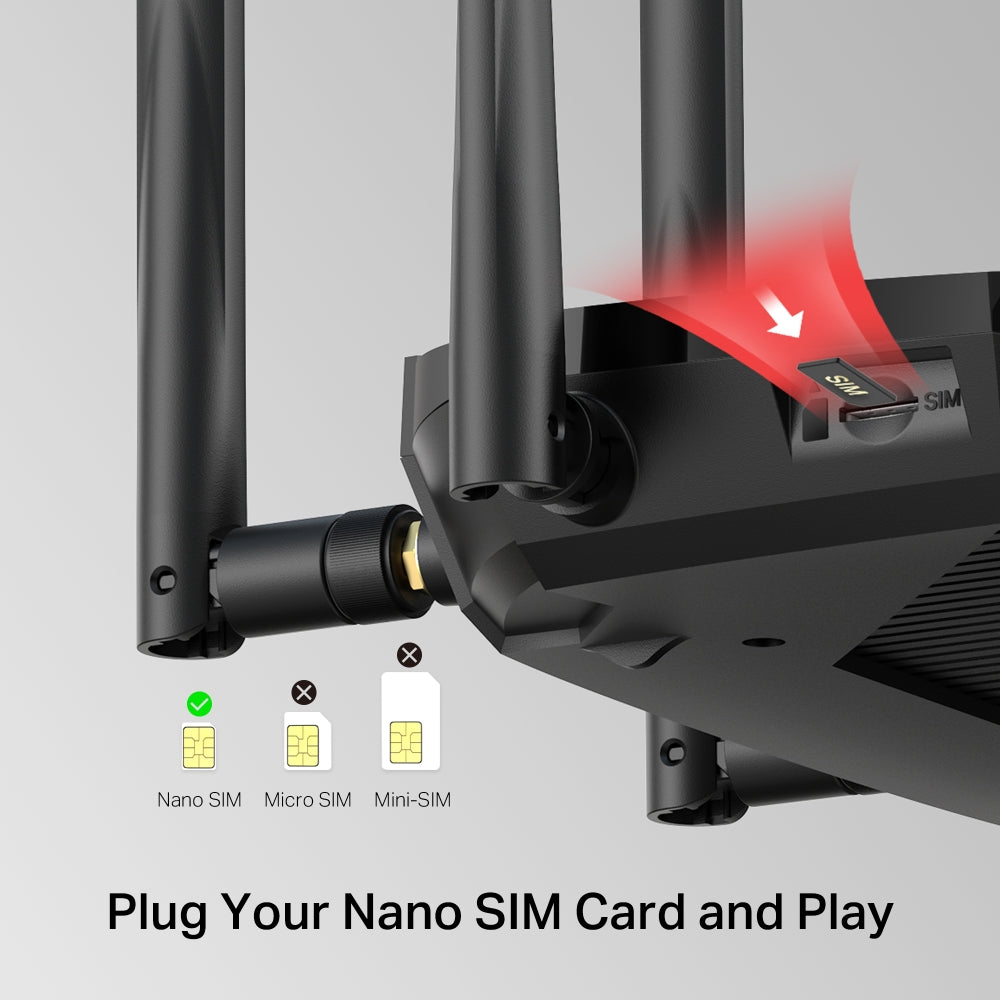

- Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
- Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
- Simultaneous Connection – Enjoy and share internet access with up to 64 Wi-Fi devices.

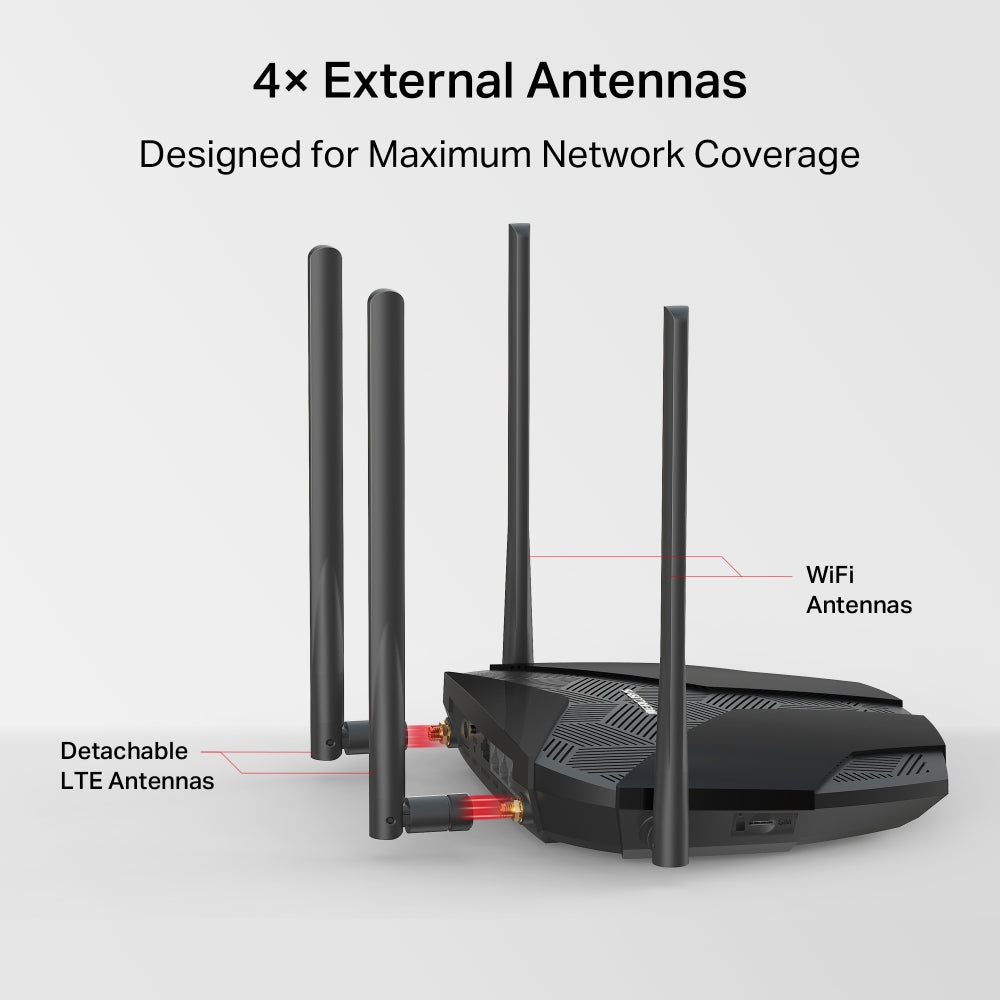

- Maximum Network Coverage – Enjoy stable and efficient connections to every device thanks to the four external antennas. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.
-

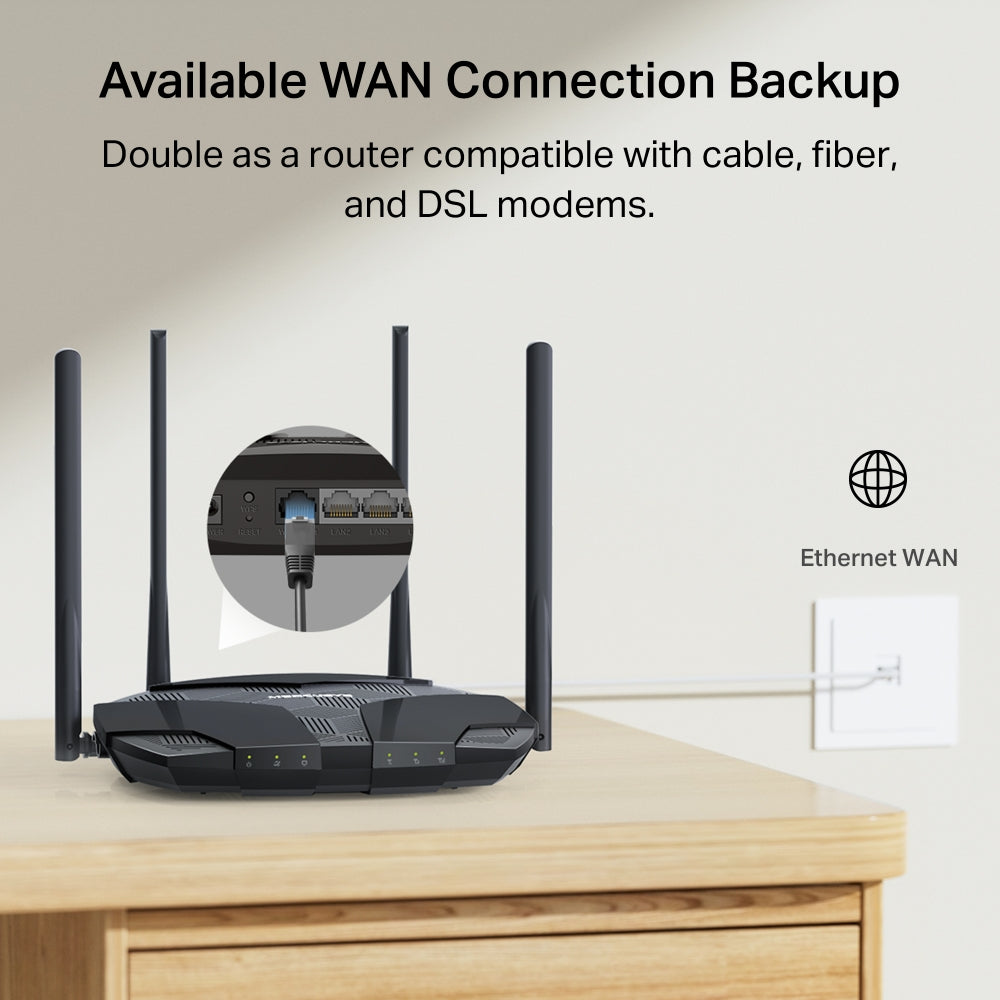

Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
-
EasyMesh Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
- Cellular
- Cellular Standards
- Cat 6
300/50 Mbps DL/UL
- Cellular Bands
- EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
- SIM
- 1× Nano SIM Card Slot
- Wireless
- Wi-Fi Class
- AC1200
- Wi-Fi (2.4 GHz)
- 300 Mbps
- Wi-Fi (5 GHz)
- 867 Mbps
- Wireless Standards
- IEEE 802.11ac/a/b/g/n
- Max Channel Width : 80 MHz
- Reception Sensitivity
- 11g 6 Mbps: -95 dBm
11g 54 Mbps: -77 dBm
11n HT20 MCS7: -74 dBm
11n HT40 MCS7: -71 dBm
11a 6 Mbps: -92 dBm
11a 54 Mbps: -75 dBm
11ac VHT20 MCS8: -70 dBm
11ac VHT40 MCS9: -65 dBm
11ac VHT80 MCS9: -61 dBm
- MAX Capacity : 64
- Recommended Clients Limit : 32
- Wireless Security
- WPA-PSK / WPA2-PSK / WPA3-SAE
- Wireless Functions
- Smart connect
WPS
Wireless Schedule
- Hardware
- Dimensions
- 209 × 171.9 × 41.7 mm
(8.2 × 6.8 × 1.6 in)

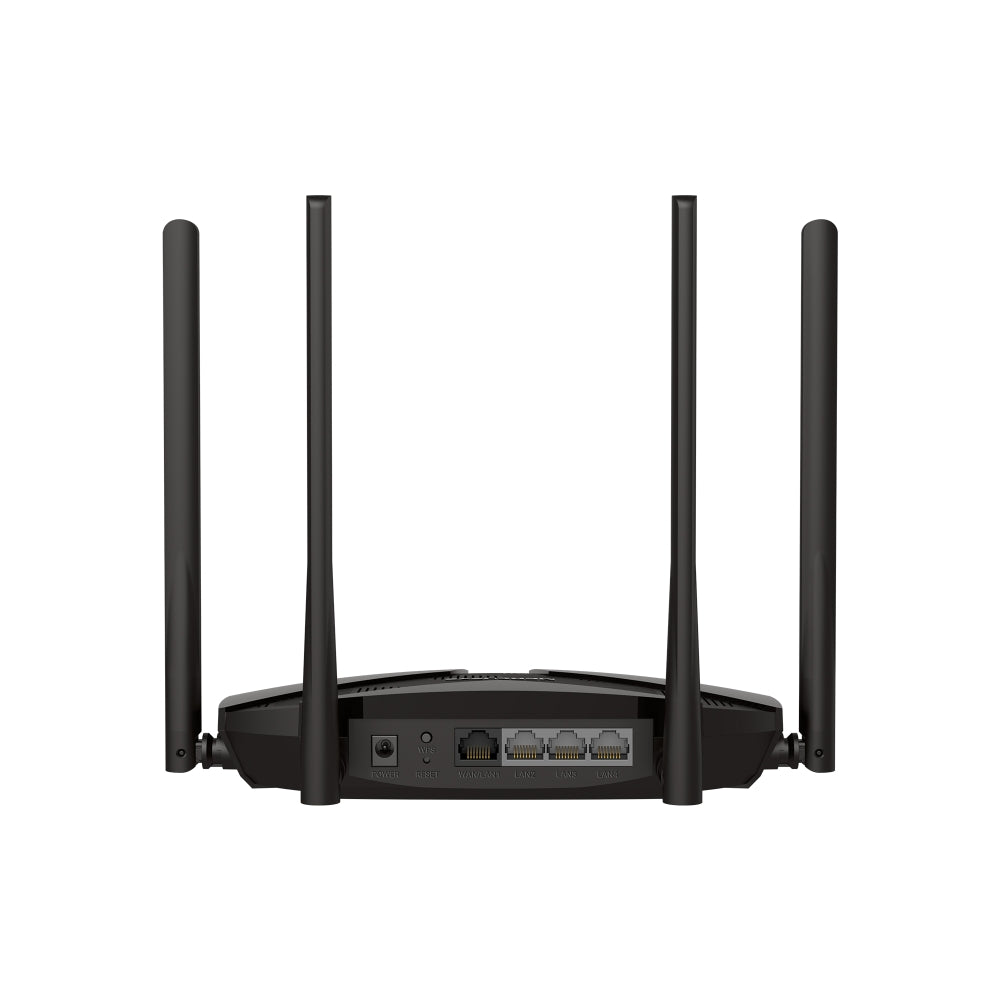

- Interfaces
- 1× GE LAN/WAN Port
3× GE LAN Ports
1× Nano SIM Card Slot

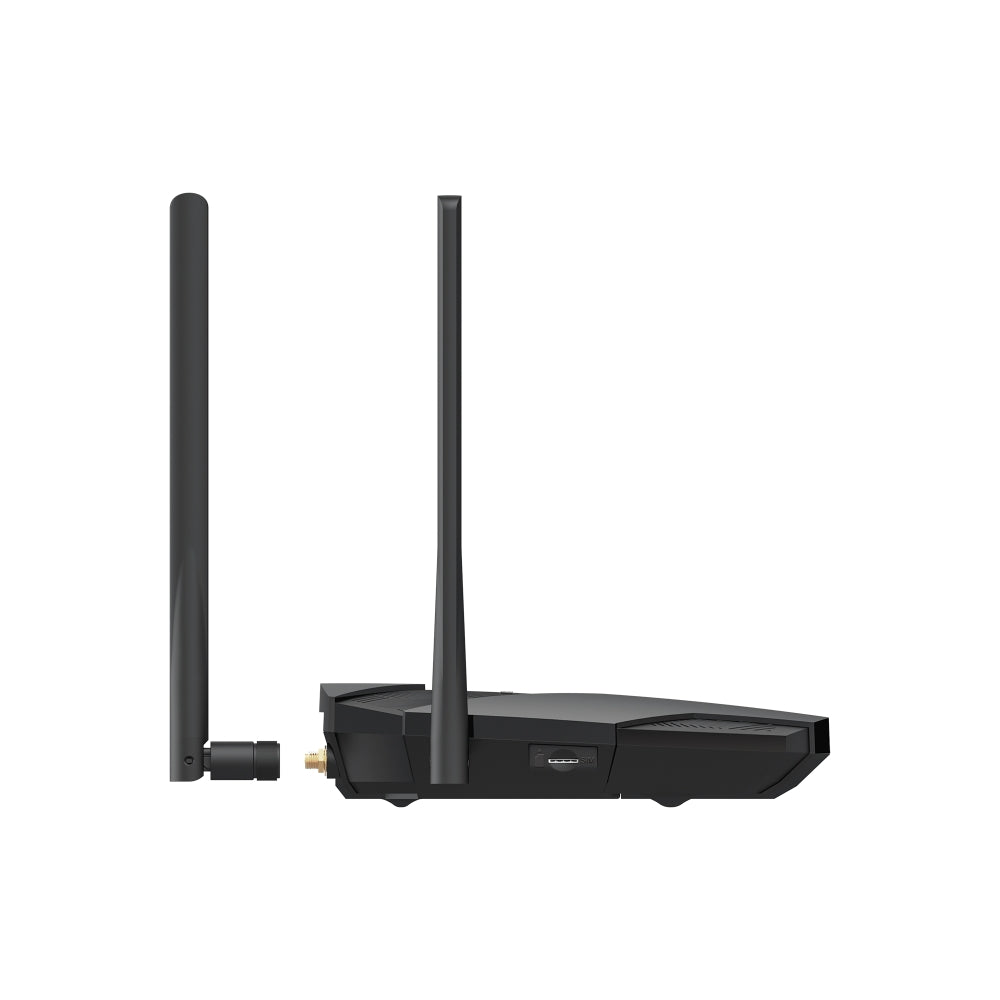

- Antenna
- 2 External Detachable 4G LTE Antennas
2 External Wi-Fi Antennas
- Button
- 1×WPS Button
1×Reset Button
- Installation : Desktop
- LED
- 1× POWER
1× Internet
1× LAN
3× Signal
- Retail Package Dimension 305 × 274 × 60
- Carton Dimension
- 555 × 310 × 245
- Software
- Cellular Mode
- 4G Mode
3G Mode
- Cellular APN
- Data Roaming
Band Search
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management
- WAN Mode
- Dynamic IP
Static IP
PPPoE
PPTP
L2TP
- NAT Forwarding
- ALG
Virtual Server
Port Triggering
UPnP
DMZ
- Protocols
- IPv4
IPv6
- Data Settings
- Data Statistics
Data Limit
- Guest Network
- 2.4 GHz Guest Network
5 GHz Guest Network
- Parental Controls
- Time Control
Website Filtering
- DHCP
- Server
DHCP Client List
Address Reservation
- DDNS
- DynDNS
NO-IP
- SMS
- Inbox
New Message
Outbox
Drafts
- QoS : √
- Security
- IPv4 SPI Firewall
Access Control
IP & MAC Binding
IPv6 Firewall
- ISP Feature
- TR-069
- System
- Time & Language
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP Settings
- LED Management
- LED Control
Night Mode
- Device Management
- MERCUSYS APP
Web GUI
- Cloud
- Firmware Upgrade over the Cloud
Remote Management
- Language
- English
Deutsch
Español
Français
Italiano
Polski
Русский
- Certifications : CE
- Network Services Enabled by Default
-
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
DNS proxy
Processing DNS packets (DNS)
• Port: 53 Protocol: TCP/UDP
App management
Manage and configure device through app
• Port: 20002 Protocol: UDP
- Package Contents
- 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB235-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
- Environment
- Operating Temperature: 0 °C~40 °C (32 °F~104 °F)
Storage Temperature: -40 °C~60 °C (-40 °F~140 °F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
