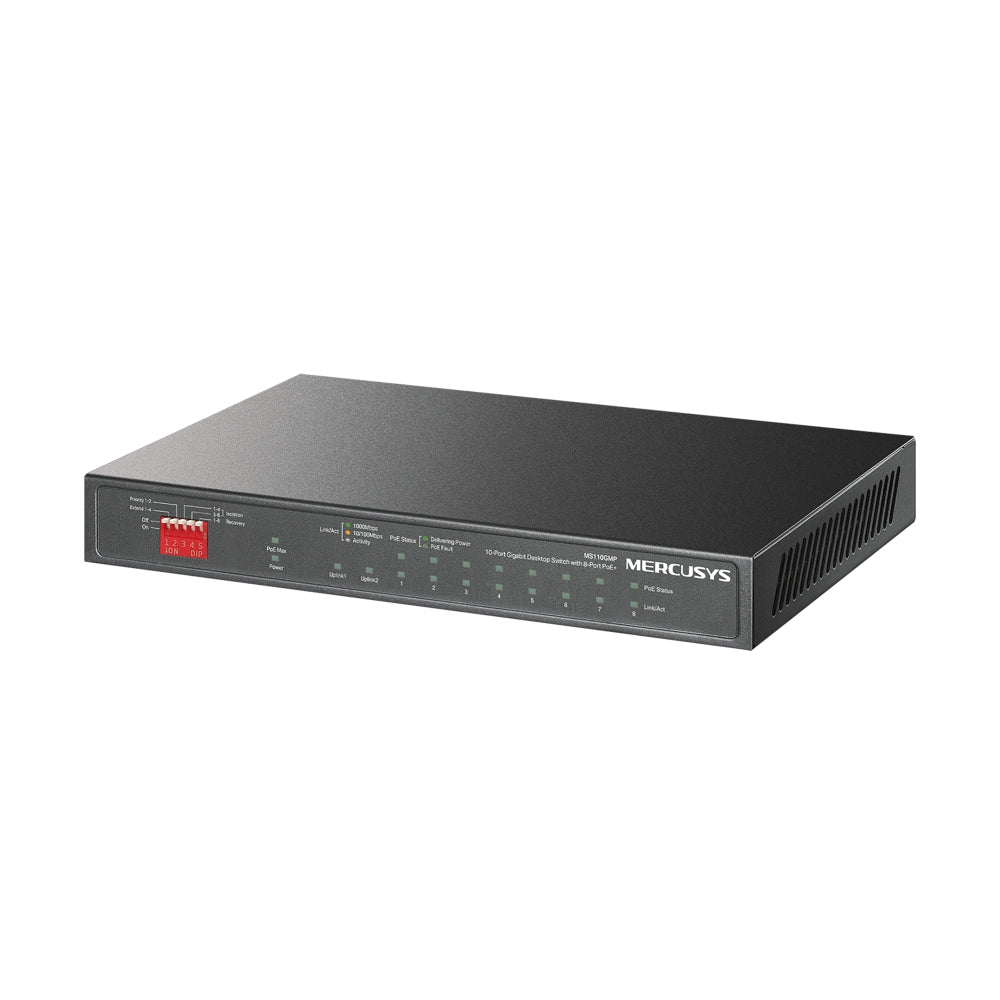

Mercusys MS110GMP, 10-Port Gigabit Desktop Switch with 8-Port PoE+

Roll over image to zoom in Click on image to zoom

Mercusys MS110GMP, 10-Port Gigabit Desktop Switch with 8-Port PoE+

TP-LinkSKU: MER-MS110GMP

8× Gigabit PoE+ ports, and 2× Gigabit Uplink Ports
8× PoE+ ports transfer data and power via a single cable with a total power budget of 111 W^*
Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
Up to 250 m data and power transmission range under Extend Mode^**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
Isolation Mode allows one-click client traffic separation for higher security and performance
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
Plug and play with no configuration required
Fanless design reduces power consumption and works silently in its location

Hardware

Dimensions : 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
PoE Ports : RJ45 Ports: • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 111 W
Interfaces: • 8× 10/100/1000 Mbps PoE+ Ports
• 2× 1000 Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media: • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
External Power Supply : External Power Adapter (Output: 54VDC / 2.22A)
Fan Quantity : Fanless
Physical Security Lock : Yes
Jumbo Frame : 16 KB
Switching Capacity : 20 Gbps
MAC Address Table : 4K

Max Power Consumption: • 7.37 W (220V / 50Hz with no PD connected)
• 129.4 W (220V / 50Hz with 111 W PD connected)
Max Heat Dissipation: • 25.13 BTU/h (220V / 50Hz with no PD connected)
• 441.25 BTU/h (220V / 50Hz with 111 W PD connected)

Software

Transfer Method : Store-And-Forward
Advanced Features: • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–4 / 5-8)
• PoE Auto Recovery (Ports 1-8)
• MAC Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Performance : Packet Forwarding Rate

14.88 Mpps

Others

Certifications : FCC, CE, RoHS
Package Contents: • MS110GMP
• Power Adapter
• Installation Guide
Environment: • Operating Temperature: -10℃~40℃ (14℉~104℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
