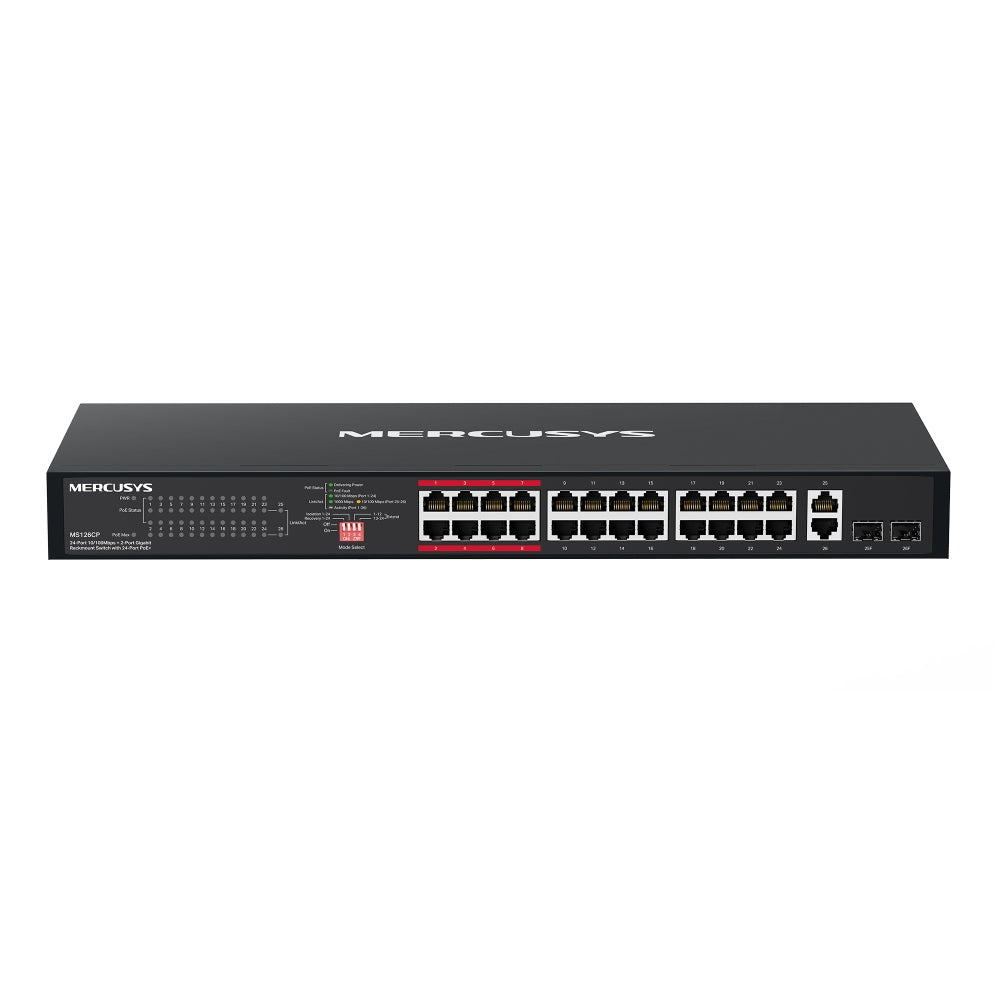

Mercusys MS126CP, 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+

Roll over image to zoom in Click on image to zoom

Mercusys MS126CP, 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+

Name: Mercusys MS126CP, 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+
Brand: TP-LINK
SKU: MER-MS126CP
Price: 329.0 NZD
Availability: OutOfStock

TP-LINKSKU: MER-MS126CP

MS126CP

24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+

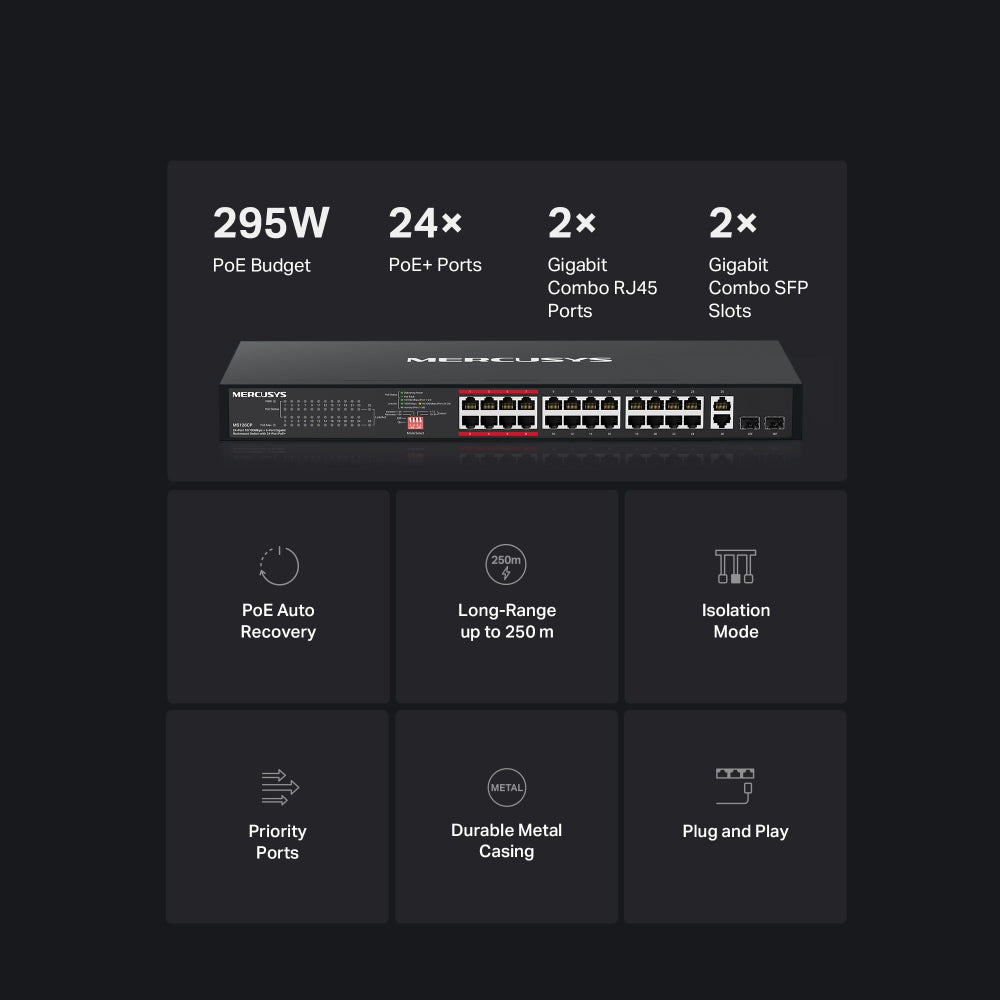

24 PoE+ Ports with 2 Gigabit Combo Uplink: 24× 10/100 Mbps PoE+ RJ45 ports , 2× Gigabit Combo RJ45 ports, and 2× Gigabit Combo SFP Slots
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 295 W for all PoE ports.* Working with IEEE 802.3af/at compliant PDs

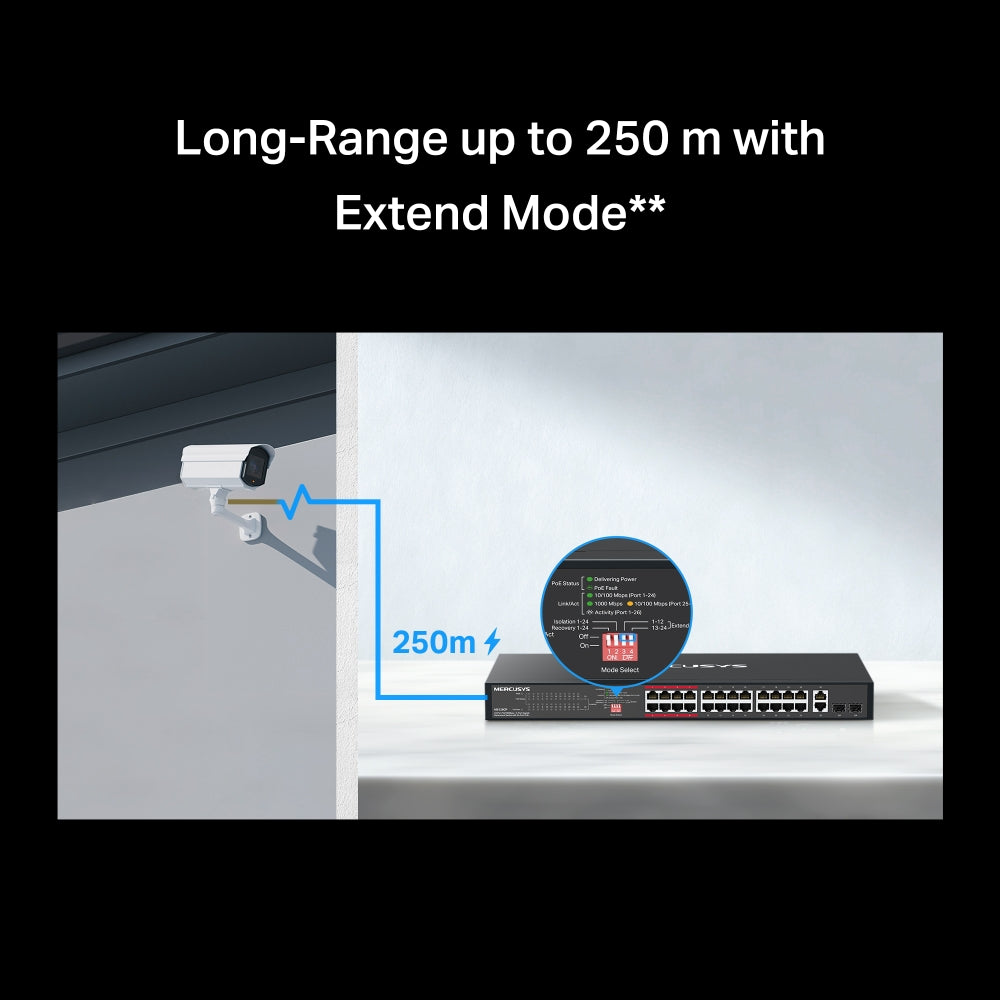

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**

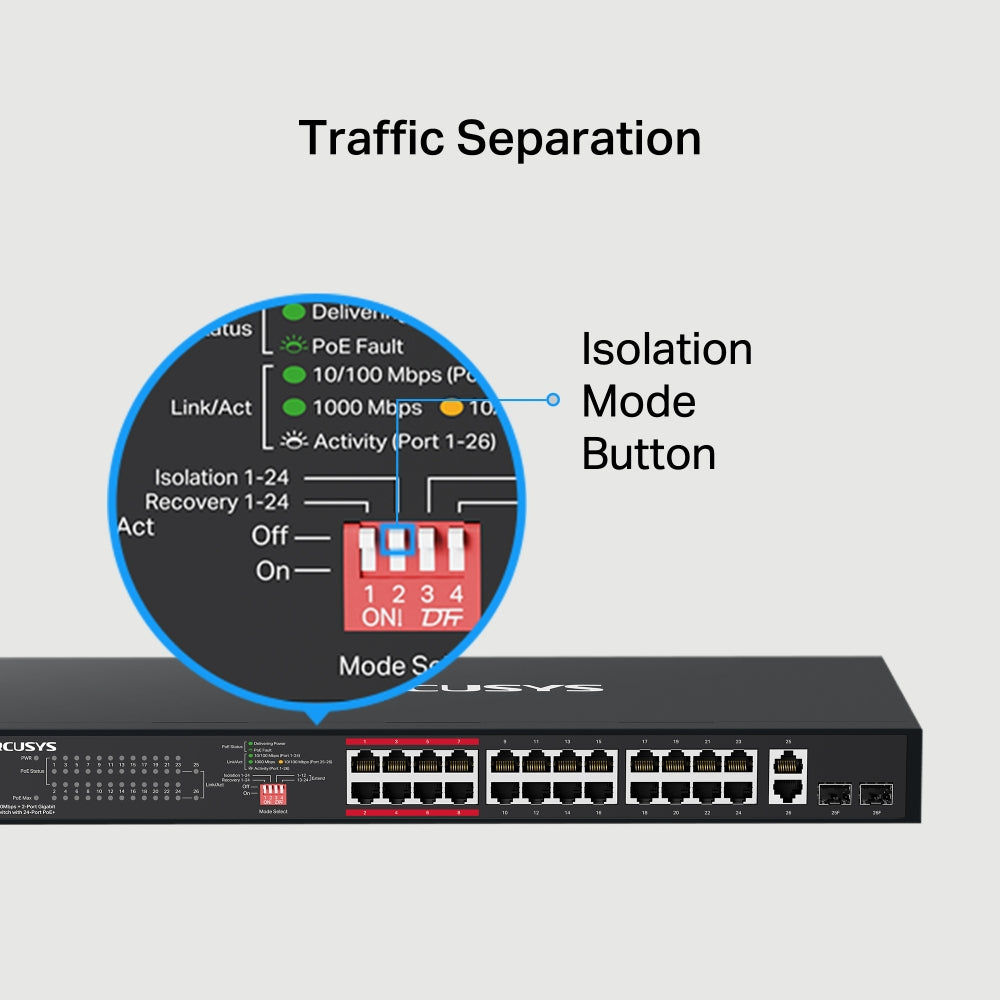

Isolation Mode: One click to divide traffic for specific ports for stability and security

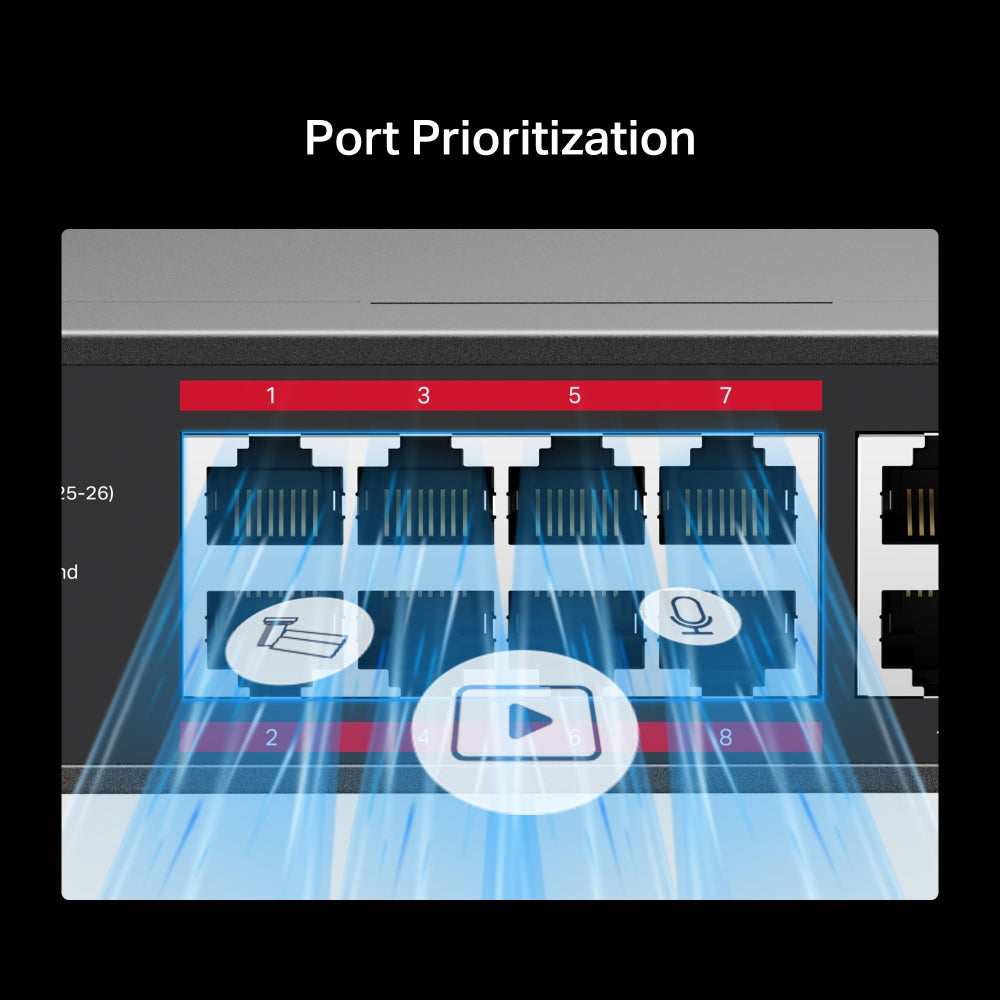

Priority Mode: Guarantees the quality of sensitive applications like video monitor
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
Plug and Play: No configuration or central management required

Hardware

Dimensions : 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

PoE Ports

RJ45• Standard: 802.3at/802.3af compliant• PoE Ports: Ports 1–24• PoE Power Budget: 295 W

Interfaces

• 24× PoE+ 10/100 Mbps RJ45 Ports• 2× Combo Gigabit RJ45 ports• 2× Combo Gigabit SFP Slots

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable(maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-X MMF, SMF

Power Supply : 100–240V AC, 50/60 Hz

Fan Quantity : 2 Fans

Physical Security Lock : Yes

Jumbo Frame : 16 KB

Switching Capacity : 8.8 Gbps

MAC Address Table : 16 K

Max Power Consumption

• 11.72W（220/50HZ no PD connected）• 326.95W（220/50HZ with 295W PD connected）

Max Heat Dissipation

• 1168.47 BTU/hr (110 V/60 Hz @ 25 °C, with 295 W PD connected)• 1114.9 BTU/hr (220 V/50 Hz @ 25 °C, with 295 W PD connected)

Software

Transfer Method : Store-And-Forward

Advanced Features

• Compatible With IEEE 802.3at/af Compliant PDs• Extend Mode (Ports1-12 and Ports13-24 up to 250m PoE power supply and datatransmission)• Priority Mode (Ports 1-8)• Isolation Mode (Ports 1-24)• PoE Auto Recovery (Ports 1-24)• MAC Address Auto-Learning And Auto-Aging• IEEE802.3x Flow Control

Performance

Packet Forwarding Rate : 6.54 Mpps

Others

Certifications : CE, RoHS

Package Contents

• MS126CP• Power Cable• Installation Guide• Two mounting brackets and the fittings

Environment

• Operating Temperature: -5–45 °C (32–122 °F)• Storage Temperature: -40–70 °C (-40–158 °F)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Recover password

Create my account

Mercusys MS126CP, 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+

Description

MS126CP

24-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 24-Port PoE+
