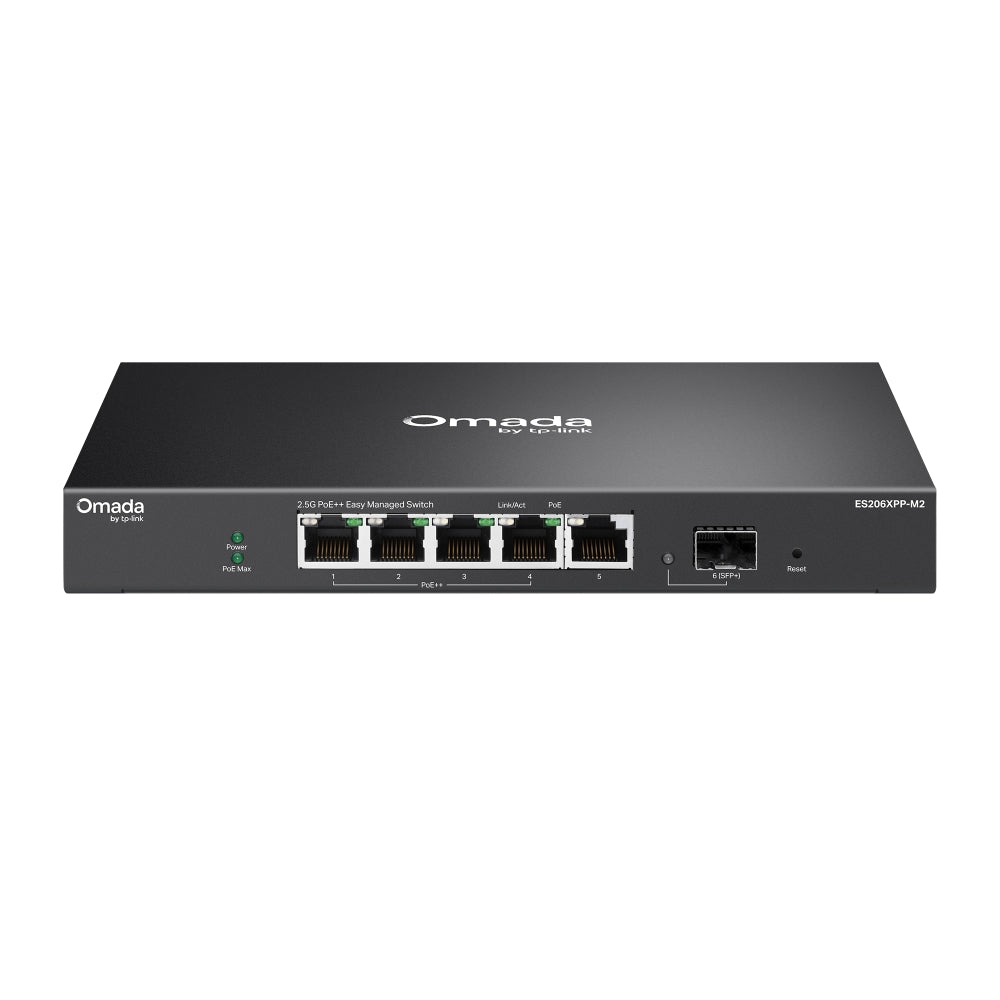

Omada 5-Port 2.5G BASE-T and 1-Port 10GE SFP+ Easy Managed Switch with 4-Port PoE++
- 5× 2.5 Gbps RJ45 ports (4× 802.3af/at/bt-compliant PoE++)
- 1× 10 Gbps SFP+ slot
- 120W PoE budget, with up to 90W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, Port Isolation, QoS△, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Power over Ethernet, Flexible Network Deployment
Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.
Works with Omada Central Essentials
for Free and Easy Cloud Management
Omada Central Essentials provides free and easy-to-use centralized cloud management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
SPECIFICATIONS
| HARDWARE FEATURES |
| Interface |
• 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++)
• 1× 10 Gbps SFP+ Slot
• Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity |
Fanless |
| Installation |
• Desktop
• Wall Mount |
| Physical Security Lock |
√ |
| Power Supply |
DC Power Adapter (Output: 53.5 VDC / 2.43 A) |
| PoE Ports (RJ45) |
• Standard: 802.3af/at/bt PoE++ compliant
• PoE Ports: 4 Ports
• PoE Budget: 120W available for all PoE++ ports, 90W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
|
| Dimensions ( W x D x H ) |
8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm) |
| Surge Protection |
±6 kV |
| PERFORMANCE |
| Packet Buffer Memory |
640 KB |
| Jumbo Frame |
10 KB |
| Switching Capacity |
45 Gbps |
| Packet Forwarding Rate |
33.48 Mpps |
| MAC Address Table |
16K |
| SOFTWARE FEATURES |
| Quality of Service |
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
|
| L2 Features |
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP |
| L2 Multicast |
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave |
| VLAN |
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method |
Store-And-Forward |
| Management Features |
| Omada App |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
