TP-LINKSKU: TL-ES210X-M2

Omada 8-Port 2.5G Easy Managed Switch with 2 10GE SFP+ Slots

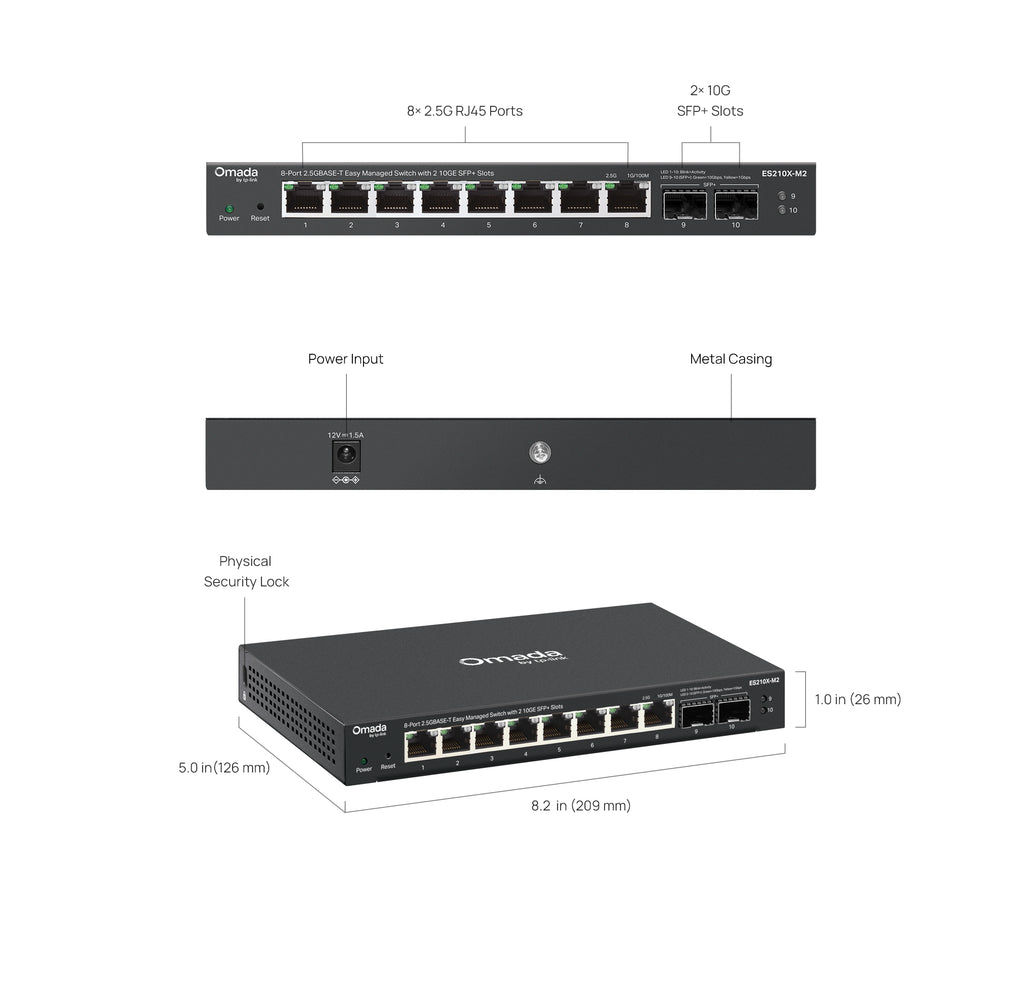

8× 2.5 Gbps RJ45 Ports
2× 10 Gbps SFP+ Slots
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralised Cloud Management via the web or the Omada app^†
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

HARDWARE FEATURES
Interface	• 8× 2.5 Gbps RJ45 Ports • 2× 10 Gbps SFP+ Slots • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless

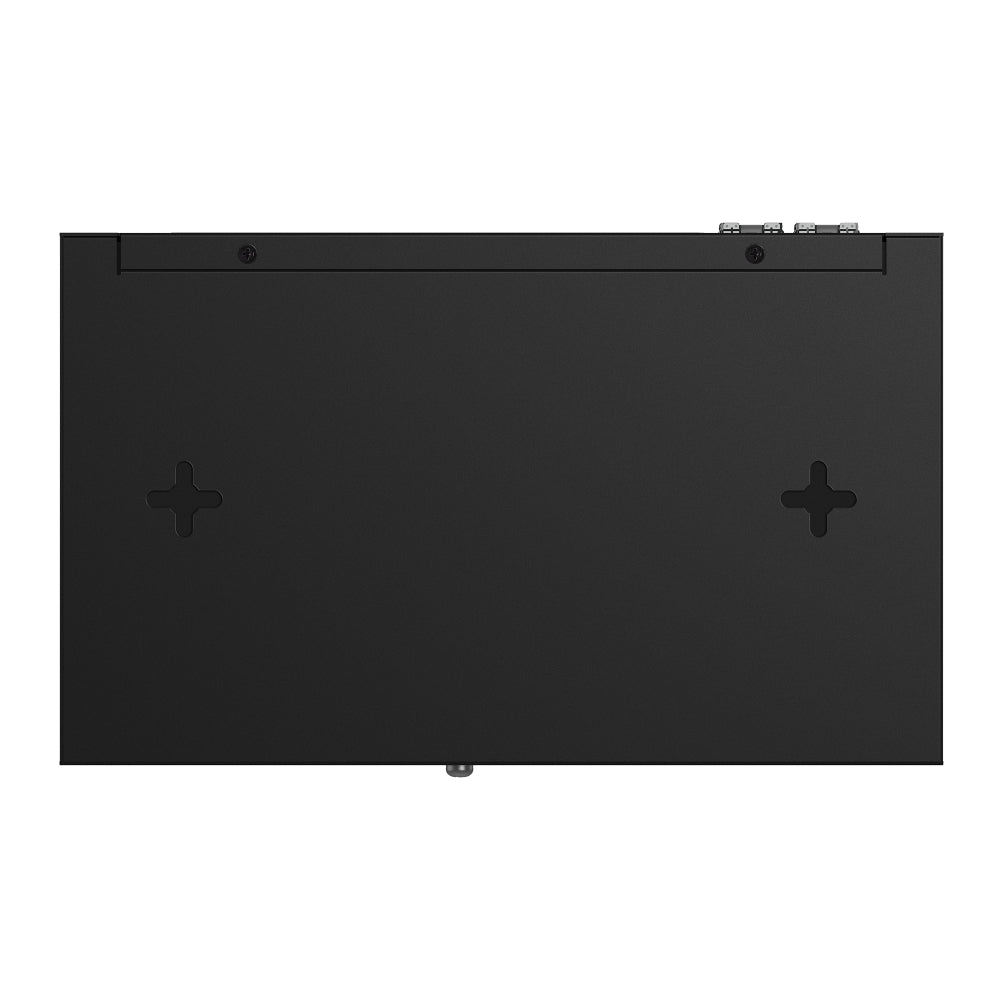

Installation	• Desktop • Wall Mount
Physical Security Lock	√

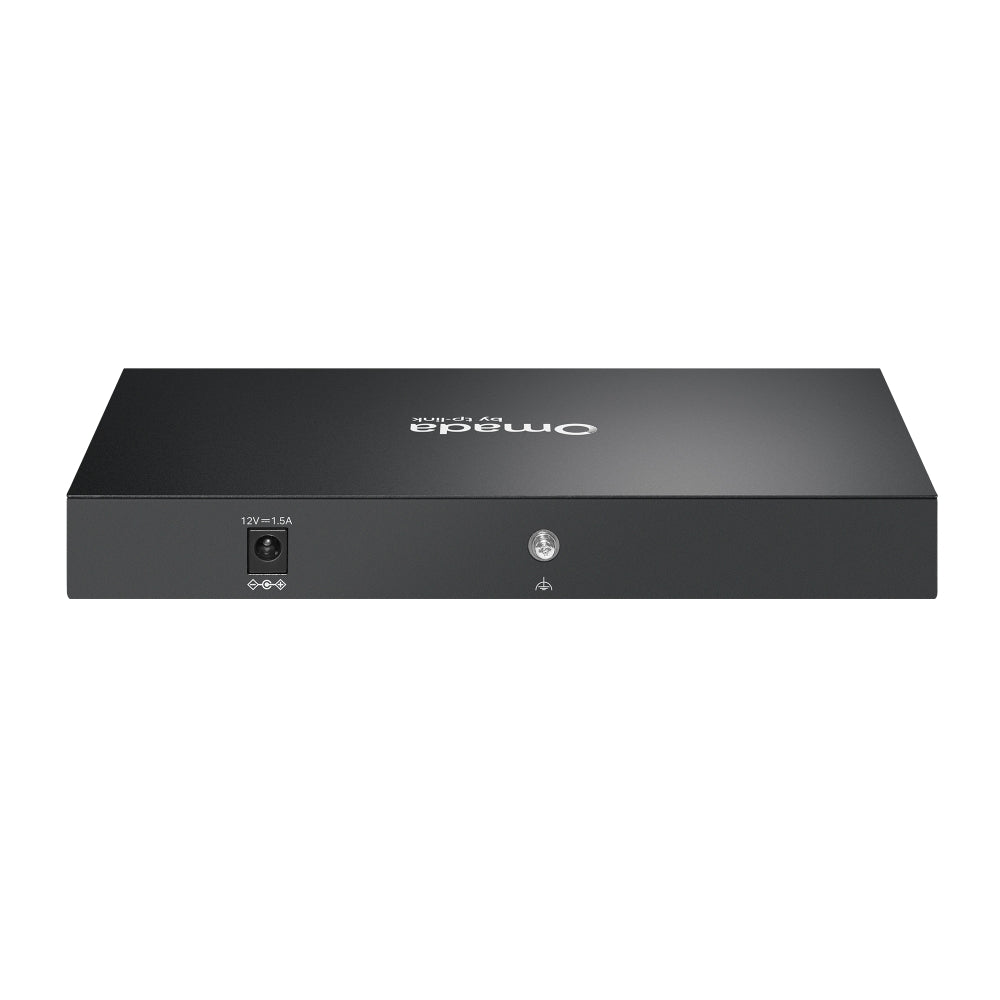

Power Supply	DC Power Adapter (Output: 12 VDC / 1.5 A)
Dimensions ( W x D x H )	8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
Surge Protection	±6 kV

PERFORMANCE
Switching Capacity	80 Gbps
Packet Forwarding Rate	59.52 Mpps
MAC Address Table	16K
Packet Buffer Memory	640 KB
Jumbo Frame	10 KB

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control^△
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES210X-M2 • Power Adapter • Rubber Feet • Installation Guide
Environment	• Operating Temperature: -5℃~40℃ (23℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.
