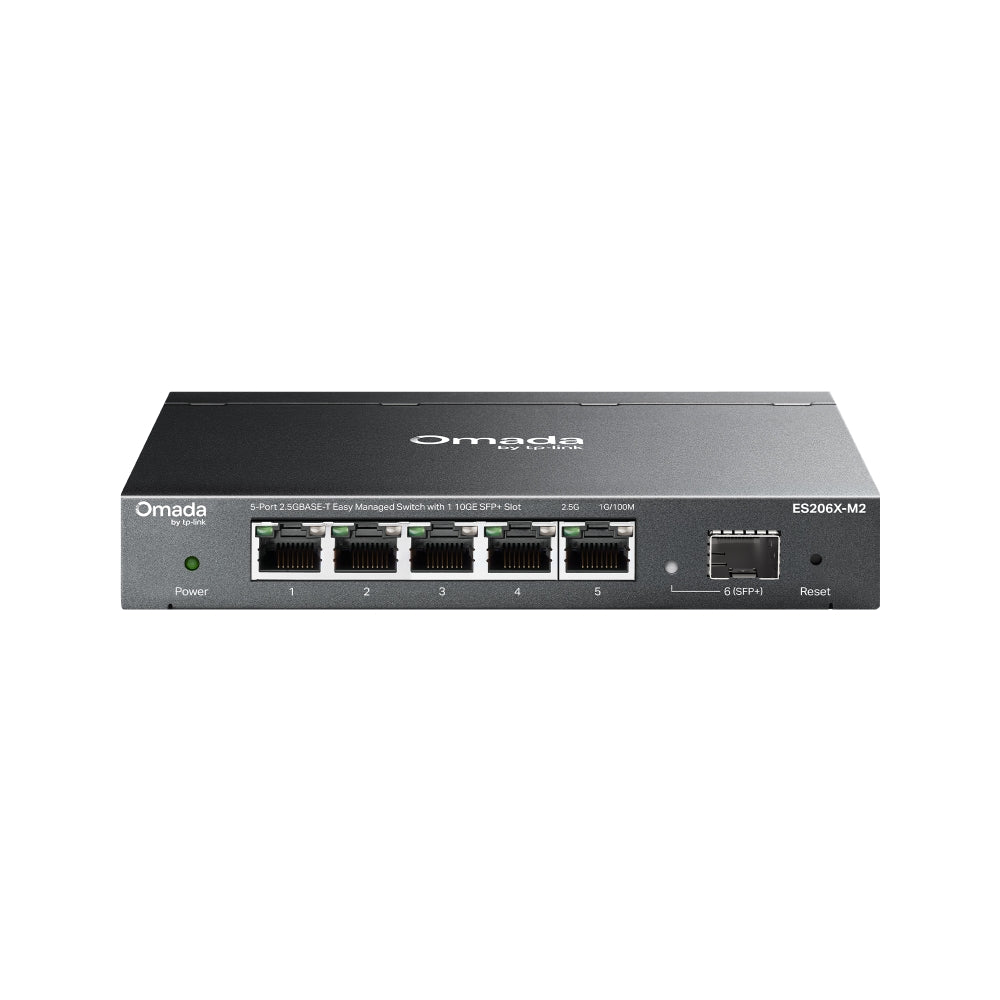

Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot
- 5× 2.5 Gbps RJ45 Ports
- 1× 10 Gbps SFP+ Slot
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
SPECIFICATIONS
| HARDWARE FEATURES |
| Interface |
• 5× 2.5 Gbps RJ45 Ports
• 1× 10 Gbps SFP+ Slot
• Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity |
Fanless |
| Installation |
• Desktop
• Wall Mount |
| Physical Security Lock |
√ |
| Power Supply |
DC Power Adapter (Output: 12 VDC / 1 A) |
| Dimensions ( W x D x H ) |
6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) |
| Surge Protection |
±6kV for Ethernet Ports |
| PERFORMANCE |
| Packet Buffer Memory |
640 KB |
| Jumbo Frame |
10 KB |
| Switching Capacity |
45 Gbps |
| Packet Forwarding Rate |
33.48 Mpps |
| MAC Address Table |
16K |
| SOFTWARE FEATURES |
| Quality of Service |
• Port-based/802.1p/DSCP QoS△
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features |
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP |
| L2 Multicast |
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave |
| VLAN |
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method |
Store-And-Forward |
| Management Features |
| Omada App |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning |
Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features |
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
|
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Content |
• ES206X-M2
• Power Adapter
• Rubber Feet
• Installation Guide |
| Environment |
• Operating Temperature: -5℃~40℃ (23℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
