Blazing-Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.‡
-
Newest Wi-Fi 7: Armed with the 4K-QAM, MLO, Multi-RUs, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.△
-
Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging Wi-Fi when you're walking around the house.†
-
Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.△
-

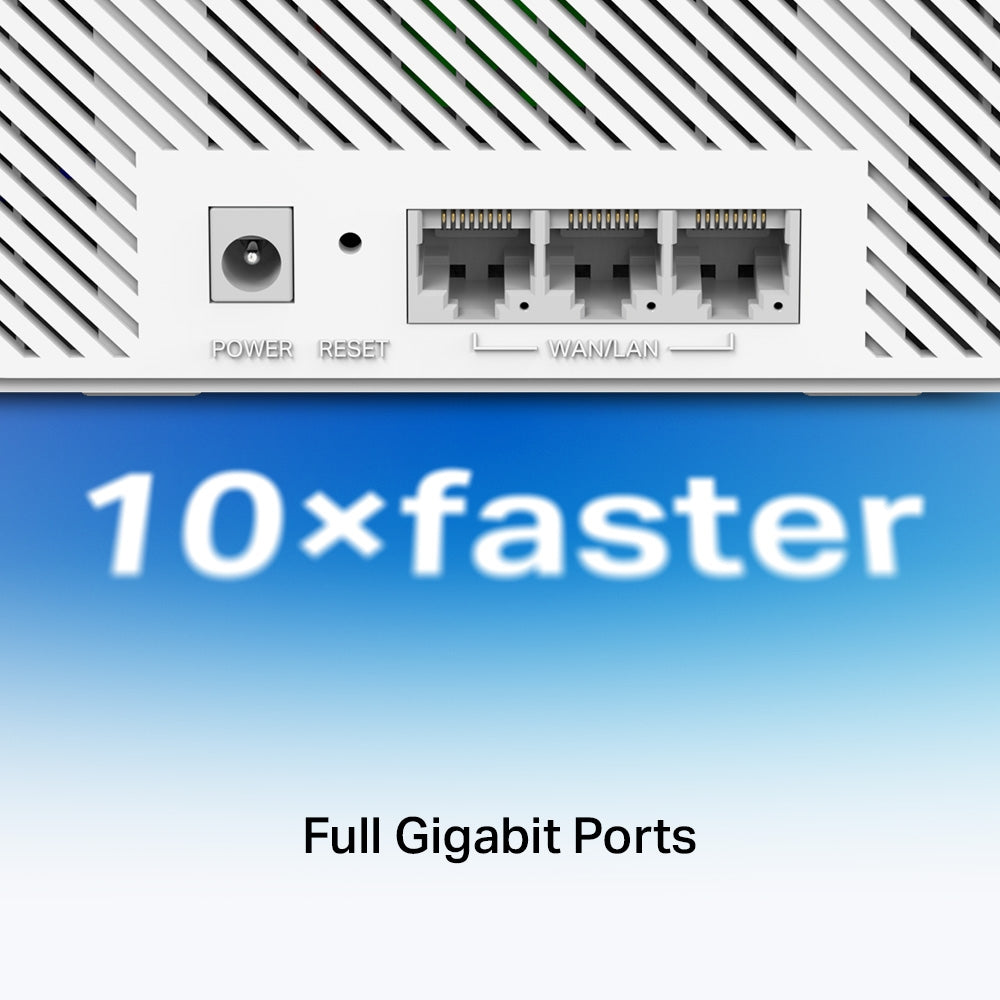

Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections.**
-
Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 7,000 ft2 / 650 m2 (3-pack) ; 5,000 ft² / 460 m² (2-pack) .‡
-
Easy Setup and Use: Network management has never been easier with the MERCUSYS app.
*Please note that the Halo H series and S series cannot work together.
- Wireless
- Wireless Standards
-
5 GHz: IEEE 802.11a/n/ac/ax/be mixed
2.4 GHz: IEEE 802.11b/g/n/ax/be mixed
- WiFi Speeds
-
2880 Mbps at 5 GHz
688 Mbps at 2.4 GHz
- Reception Sensitivity
-
2.4G: -97dBm
5G: -98.5dBm
- Transmission Power
-
5G band1 band2 < 23dBm
5G band3 < 30dBm
2.4G band < 20dBm
- Wireless Security : WPA-PSK/WPA2-PSK/WPA3-SAE
- Mesh protocol : 802.11k/v/r
- Hardware
- Dimensions : 5 × 3.2 × 3.3 in (128 × 81.3 × 83.7 mm))

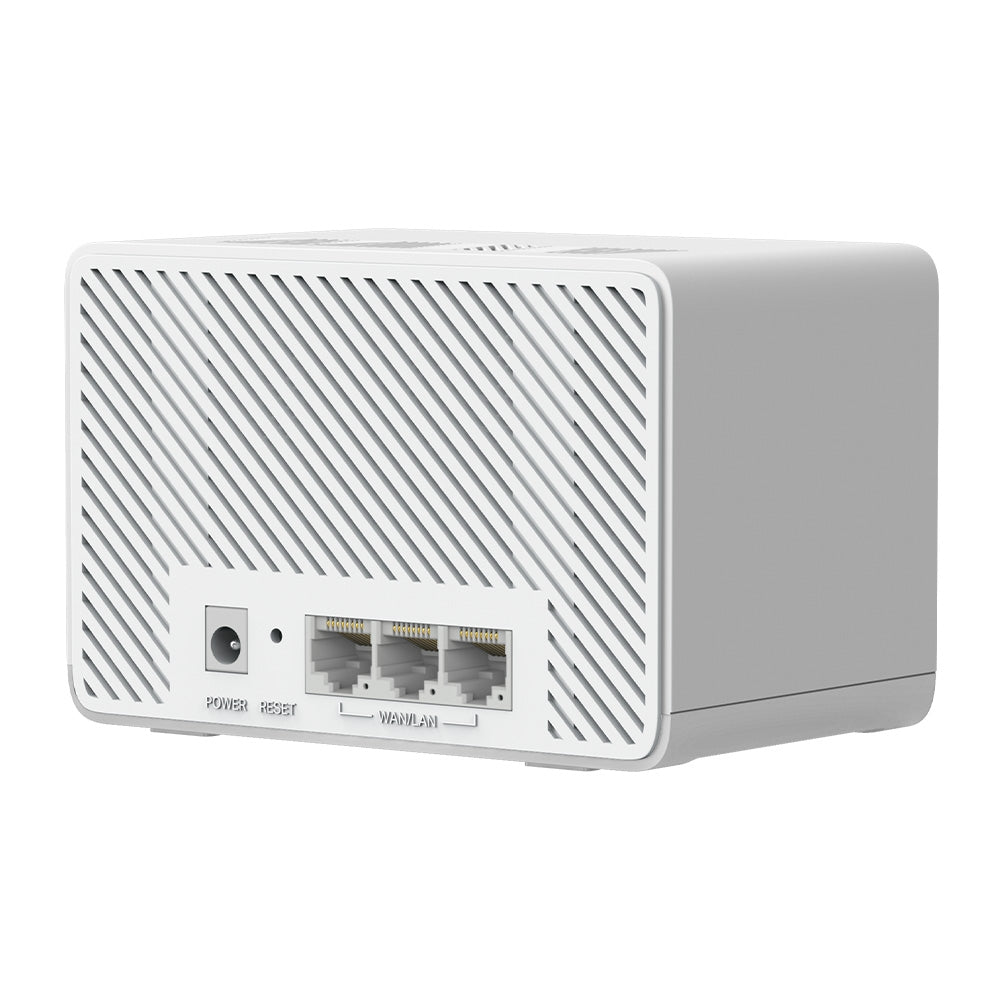

- Interfaces : 3× 1 Gbps Ports (WAN/LAN auto-sensing)
- Button : Reset button
- Software
- Operation Mode : Router, Access Point
- Quality of Service : WMM
WAN Type : Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management : Local Management, Remote Management, Multi-Managers
- Firewall Security : SPI Firewall
- Protocols : Supports IPv4 and IPv6
- Guest Network
2.4 GHz Guest Network
5 GHz Guest Network
- DHCP : Server, Client
- Package Contents
-
2-pack
2× Halo H25BE Units
1× RJ45 Ethernet Cable
2× Power Adapters
Quick Installation Guide
- Environment
-
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
