Dual Band WiFi 6 Speeds up to 3000 Mbps – 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.‡
-
Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.†
-
Whole Home Coverage – Blanket up to 5,000 ft² (460 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.‡
-
Connect over 150 Devices – Provide fast and stable connections over 150 devices.‡
-
Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.
-

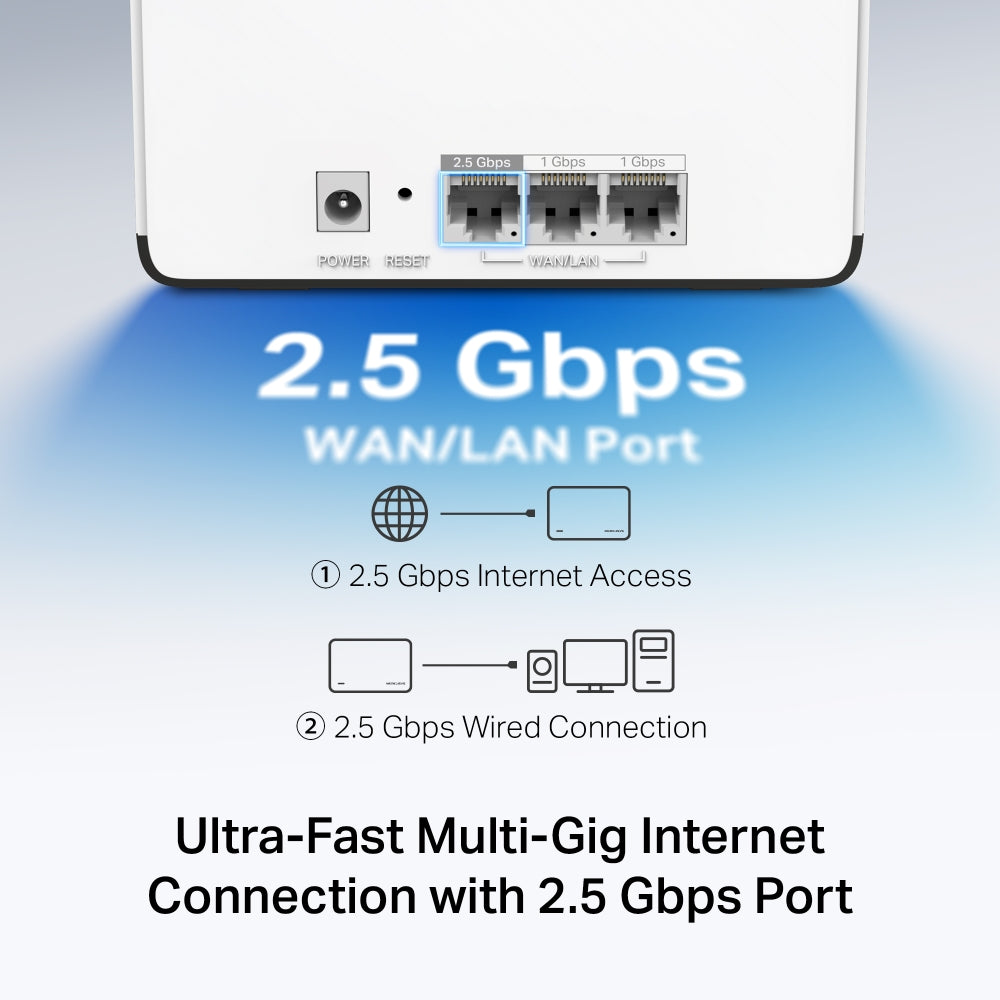

2.5 Gbps Multi-Gig Port – 1× 2.5 Gpbs and 2× Gigabit ports per Halo H85X unit for lightning-fast wired connections.§
*Please note that the Halo H series and S series cannot work together.
- Wireless
- Wireless Standards
-
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds : 2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz
- Reception Sensitivity
-
2.4GHz:
11g 6Mbps:-96.5dBm
11g 54Mbps:-78dBm
11AX HE20 MCS0:-96.5dBm
11AX HE20 MCS11:-65dBm
11AX HE40 MCS0:-93.5dBm
11AX HE40 MCS11:-63dBm
5GHz:
11a 6Mbps:-96dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74.5dBm
11ac VHT40 MCS9:-70.5dBm
11ac VHT80 MCS9:-66.5dBm
11AX HE20 MCS11:-66dBm
11AX HE40 MCS11:-63dBm
11AX HE80 MCS11:-61dBm
- Transmission Power
-
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
- Wireless Security : WPA-PSK/WPA2-PSK/WPA3
- Mesh protocol : 802.11k/v/r
-
- Hardware
- Dimensions : 5 × 3.2 × 3.3 in (128 × 81 × 83.7 mm)

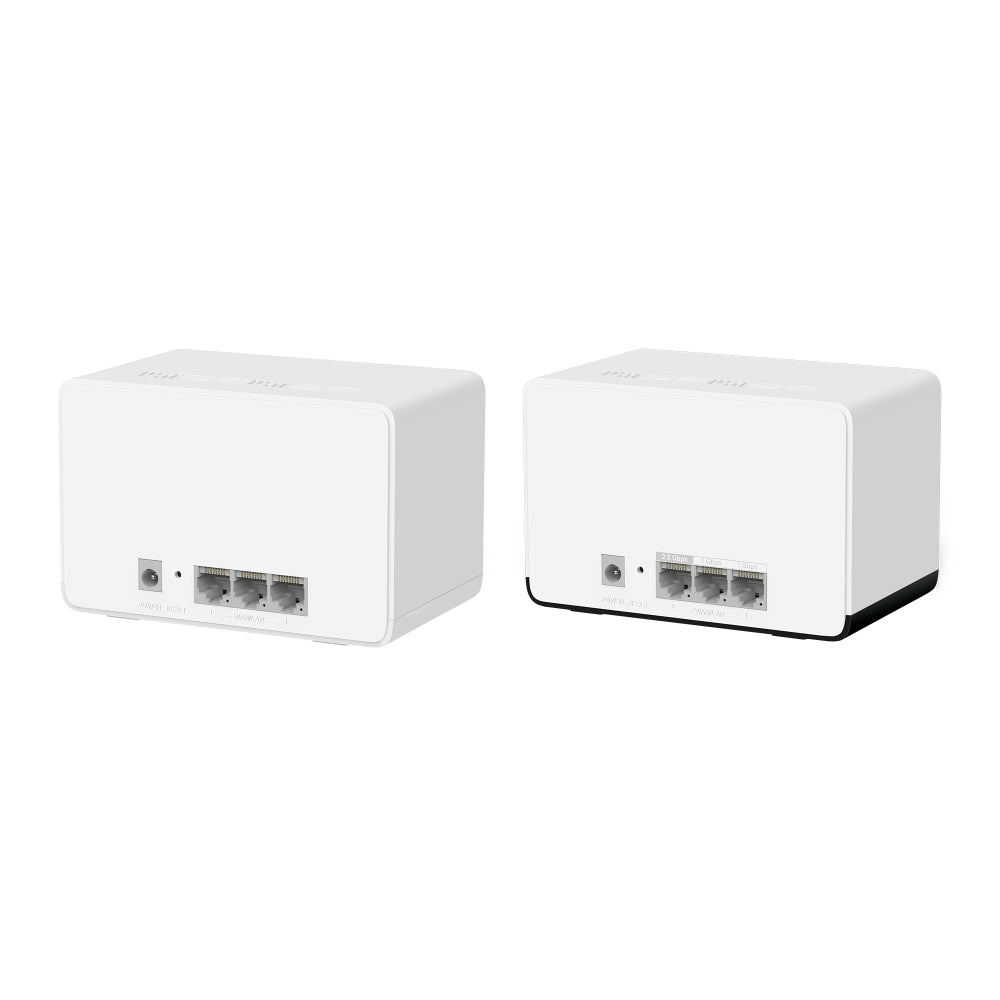

- Interfaces
-
Halo H85X: 1× 2.5 Gbps Port + 2× 1 Gbps Ports
Halo H80X: 3× 1 Gbps Ports
(WAN/LAN auto-sensing)
- Button : Reset button
-
- Software
- Operation Mode : Router, Access Point
- Quality of Service : WMM
- WAN Type : Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management : Local Management, Remote Management, Multi-Managers
- Firewall Security : SPI Firewall
- Protocols : Supports IPv4 and IPv6
- Guest Network
-
2.4 GHz Guest Network,
5 GHz Guest Network
- DHCP : Server, Client
- Others
- Package Contents
-
2-pack
1× Halo H85X Unit + 1× Halo H80X Unit
1× RJ45 Ethernet Cable
2× Power Adapters
Quick Installation Guide
- Environment
-
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
